Deploy an endpoint for a custom EfficientNet model

Once a custom model has been trained it's possible to create a SageMaker Endpoint to make inferences on new data.

1. Create Model Package

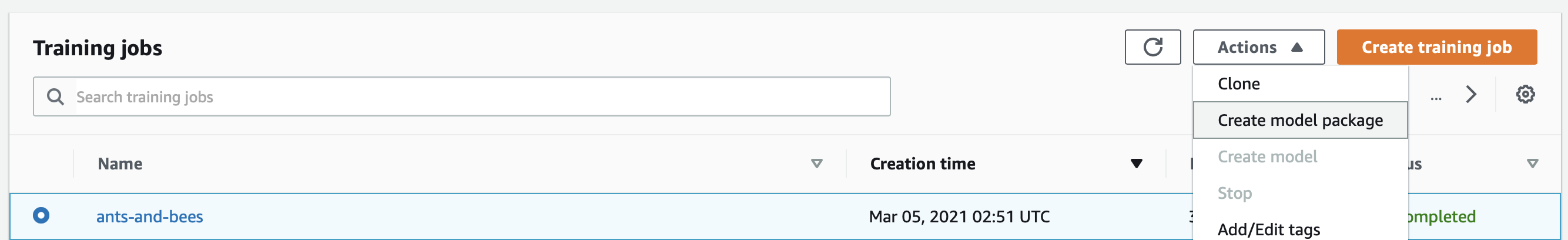

Under Training > Training Jobs select the target training job, click on Actions and then Create Model Package.

In the Create model package page:

1. Fill the Model package name e.g. ants-and-bees
2. Verify that in Inference specification options: Provide the algorithm used for training and its model artifacts is selected
3. The Algorithm and model artifacts will be filled automatically including the Algorithm ARN and Location of model artifacts
   • The Location of model artifacts will be the output of the Training Job e.g. s3://my-bucket/ants-bees-output/output/model.tar.gz
4. Click on Next
5. Under Validate this resource select No
6. Click Create model package

A new Model Package will be created.

2. Create Endpoint

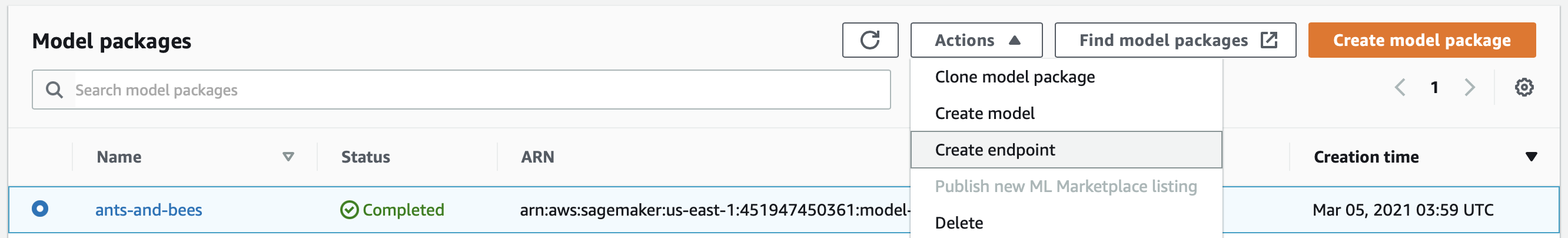

Select the Model package, click on Action and then on Create endpoint.

In the Create model and endpoint:

1. Under Model settings
   1. Select a Model name e.g. ants-and-bees
   2. Select an IAM role that has access to S3 (where the trained model was saved)
2. Under Container definition
   1. Verify Use a model package subscription from AWS Marketplace is selected
   2. Verify Selected model package ARN is pointing to the newly created Model Package
3. Click on Next
4. Select an Endpoint name e.g. ants-and-bees
5. Under Attach endpoint configuration select Create a new endpoint configuration
6. Under New endpoint configuration and Production variants
   • Click Edit in the Actions columns and select the instance type for the endpoint. The minimum recommended is ml.c5.xlarge
   • Click on Create endpoint configuration
7. Click on Submit

A new endpoint will be created.

Note

It might take a couple of minutes for the endpoint to be available.

3. Making a query

With the endpoint ready you will have an URL to make predictions, for example:

Text Only

https://runtime.sagemaker.us-east-1.amazonaws.com/endpoints/ants-and-bees/invocations

How to query the Invocations endpoint

For complete documentation on how to query this endpoint see the AWS Docs: InvokeEndpoint documentation in AWS.

The key part being how to handle the AWS Signature Version 4, for example using Python.

As a quick example let's use these two images:

AntBee

Querying the endpoint:

Python + boto: AntPython + boto: Bee

Python

import boto3

client = boto3.client("sagemaker-runtime")
endpoint_name = "ants-and-bees"

with open("validation/ant1.jpg", "rb") as f:
    payload = bytearray(f.read())

response = client.invoke_endpoint(
    EndpointName=endpoint_name,
    ContentType="image/jpeg",
    CustomAttributes='{"decode": true}',
    Body=payload,
)

print(response["Body"].json())

Text Only

['ants', 'bees']

We can see the first label is ants.

Python

import boto3

client = boto3.client("sagemaker-runtime")
endpoint_name = "ants-and-bees"

with open("validation/bee1.jpg", "rb") as f:
    payload = bytearray(f.read())

response = client.invoke_endpoint(
    EndpointName=endpoint_name,
    ContentType="image/jpeg",
    CustomAttributes='{"decode": true}',
    Body=payload,
)

print(response["Body"].json())

Text Only

['bees', 'ants']

We can see the first predicted label is bees.

Full API docs

For the complete documentation of the API including the different inputs and responses and more ways to query the Invocations endpoint see the API page.
